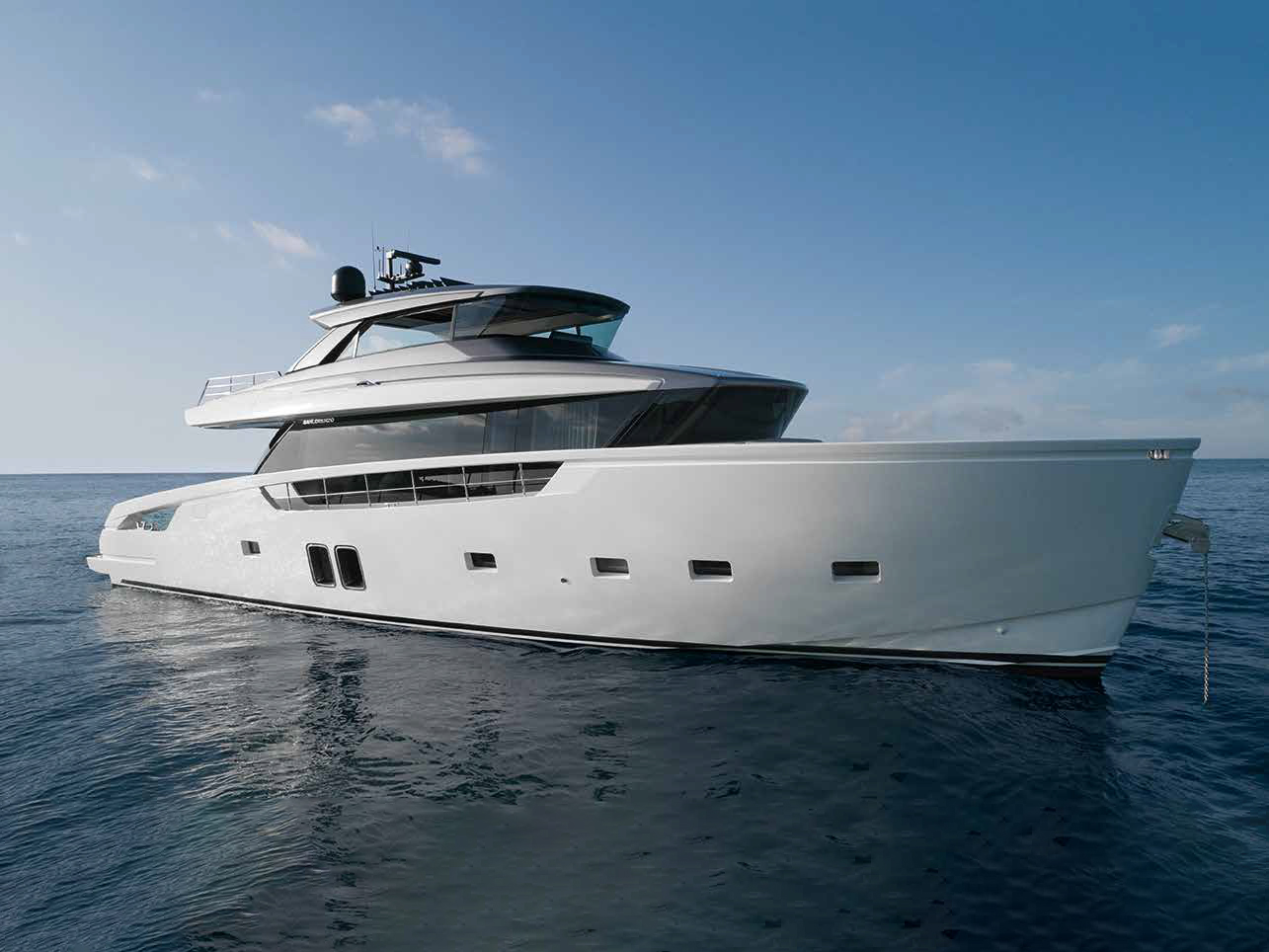

New Sanlorenzo SX76 available for delivery in March 2022. The SX76 is the smallest of the hugely successful SX crossover range from Sanlorenzo and boasts a huge beach club, open cockpit, large bow lounge and multi purpose flybridge. When you enter the saloon you are greeted by a space full of light thanks to her large floor to ceiling windows, this boat has the very sociable semi-open galley and her four cabin layout offers a full beam owners cabin, VIP cabin and two guest cabins all of which have their own bathrooms. She has been very thoughtfully specified and the below details the options, furniture and soft decor items that this boat will be built with. Please do get in contact with us to discuss this SX76 opportunity in more detail. The images show the renderings of the interior and flybridge for this Sanlorenzo SX76.
Year
2022
Location
Available March 2022, United Kingdom
Cabins
4
Crew
0
LOA
78ft / 24m
Beam
6.6m
Cruising Speed
18
Max Speed
22
Engines
Volvo IPS1200 D13-900HP
Reference
37454
Price
€5,467,670 Tax Not Paid
NEW SANLORENZO SX76 BUILT BY SANLORENZO, ITALY
Hull #66, ex-shipyard in February 2022
CONSTRUCTION
Hull, deck and superstructure in composite material, with appropriately spaced transverse frames and girders, which run longitudinally
The main deck and the superstructure are a sandwich construction laminated with a closed cell foam core.
Two watertight bulkheads; one to divide the engine room from the accommodation area and another in the bow to separate accommodations from technical storage
The hull will have a partial double bottom where the structural tanks for fuel, fresh water, grey and black water will be fitted
Teak is laid to the beach club, cockpit, side decks, bow and flybridge - 12mm thick glued directly onto the deck
DIMENSIONS
Length overall - 23.75 m
Maximum beam - 6.60 m
Displacement - half load - 63 t
Displacement - full load - 67 t
Waterline length - half load - 21.05 m
Waterline length - full load - 21.15 m
Draft - half load - 1,58 m
Draft - full load - 1,65 m
FOUR CABIN LAYOUT WITH TWO CREW
Master cabin amidships and VIP cabin at bow
MAIN DECK

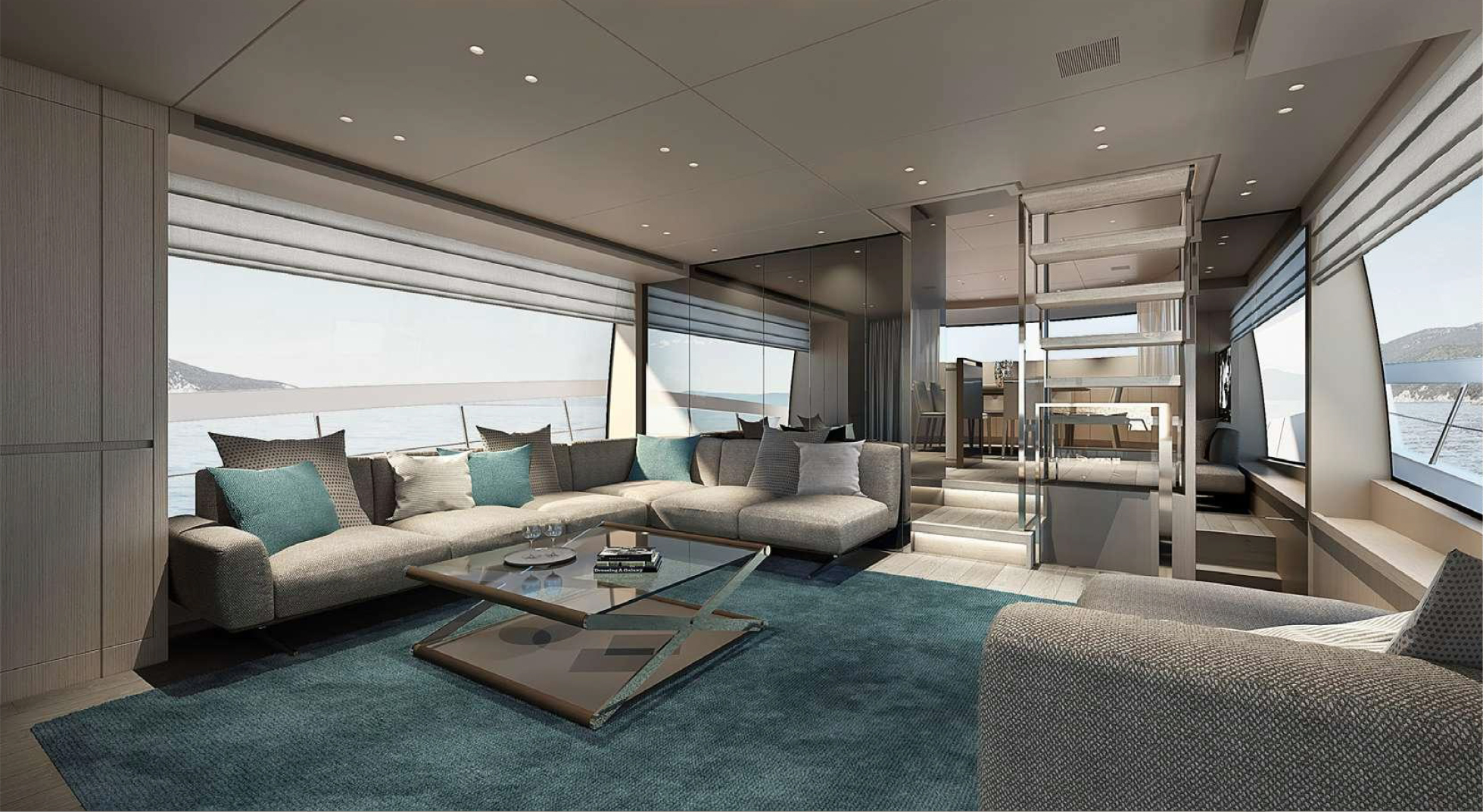

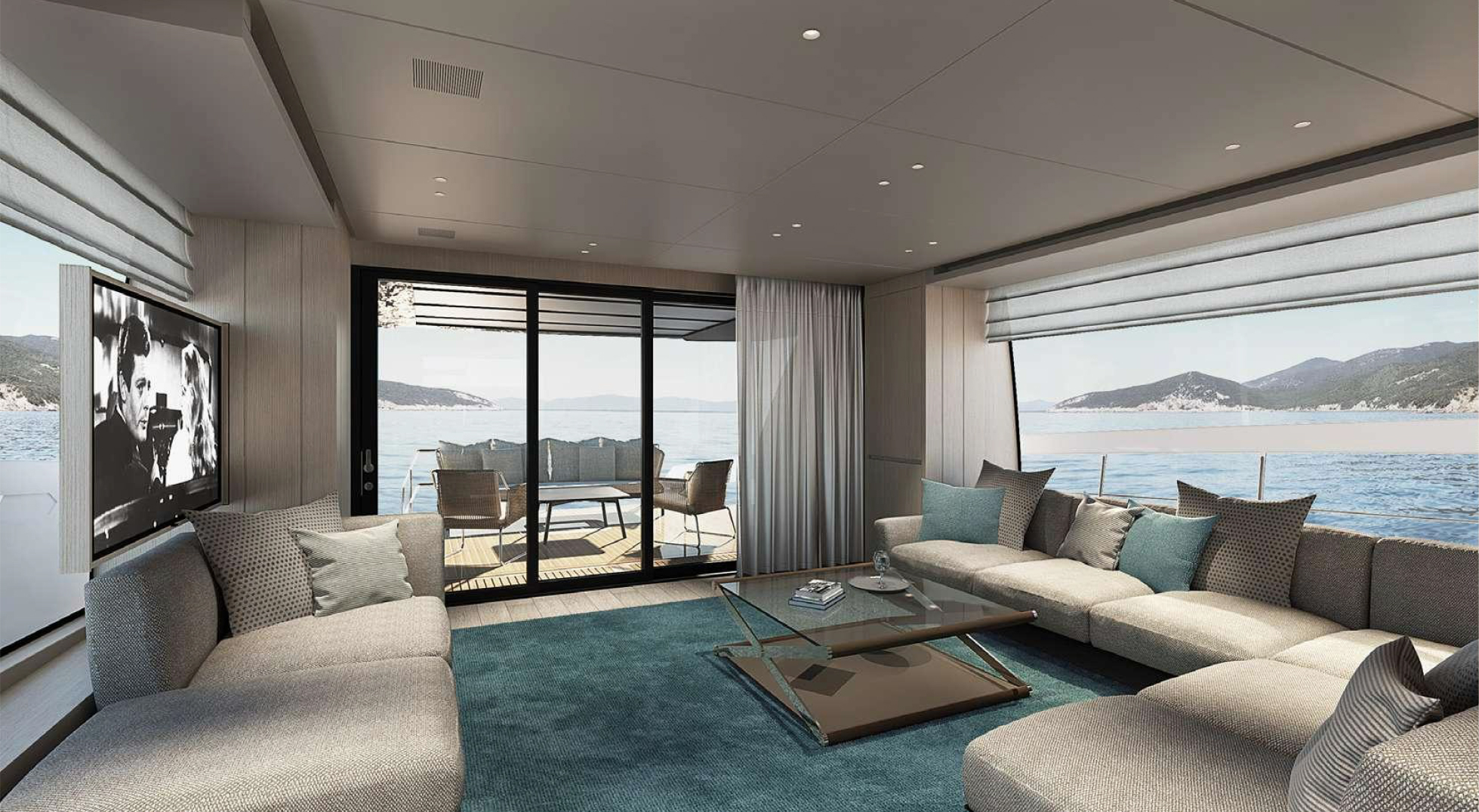

Saloon - Large L-shaped sofa and coffee table to port, chaise lounge to starboard, 50" TV in cabinet, storage cabinet, 18 bottle wine cooler, upgraded Cadorin Oak wooden floor to saloon.

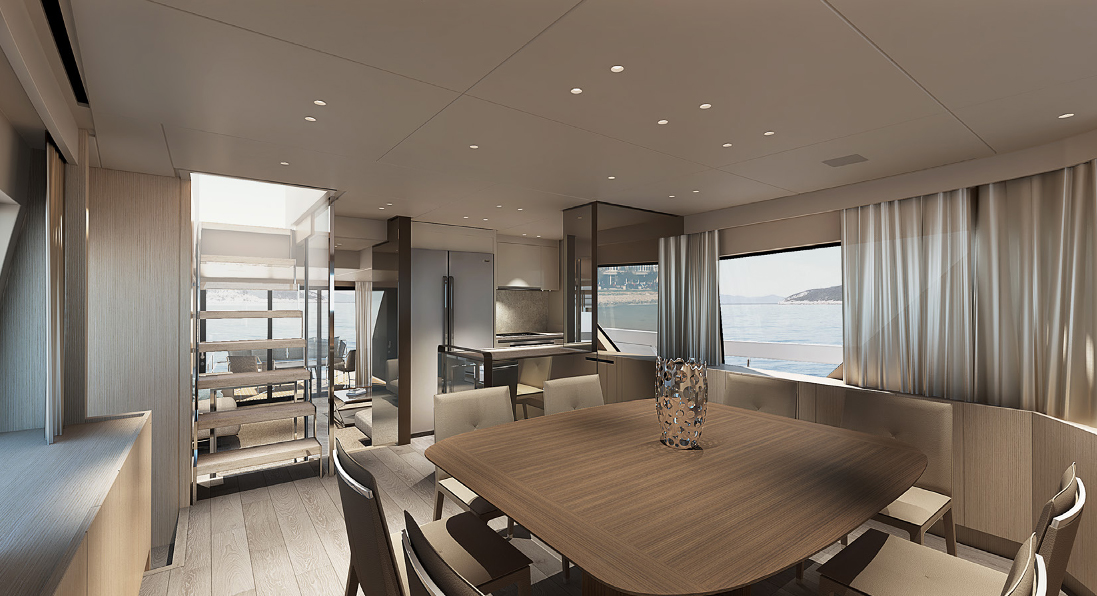

Dining Room - Situated forward of the saloon with Tabu Tai Walnut dining table and eight chairs, icemaker, fridge, storage cupboards and pantograph door to stbd.
Galley - The forward galley bulkhead open to the dining area. Dune Del Deserto marble worktop and splash back, fully equipped with Miele oven, Miele induction hob, extractor fan, sink, Miele dishwasher, General Electric stainless steel side by side fridge.

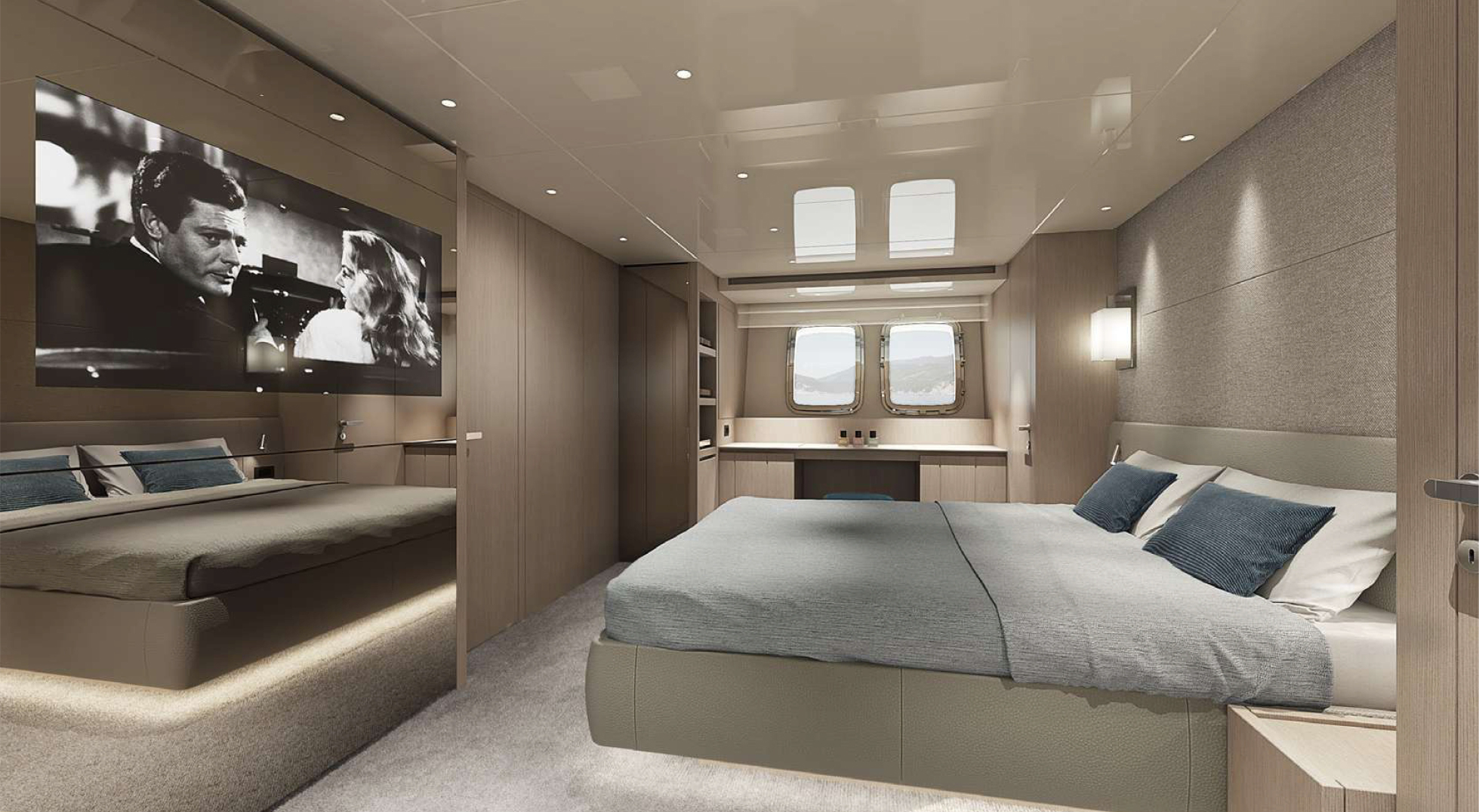

Master Cabin - Double bed with 4 draws, bedsides tables, LED lighting underside of bed and bedside tables, walk-in wardrobe, vanity desk to starboard, sofa to port, carpet to floor, 43" TV behind stopsol mirror and black out blinds.

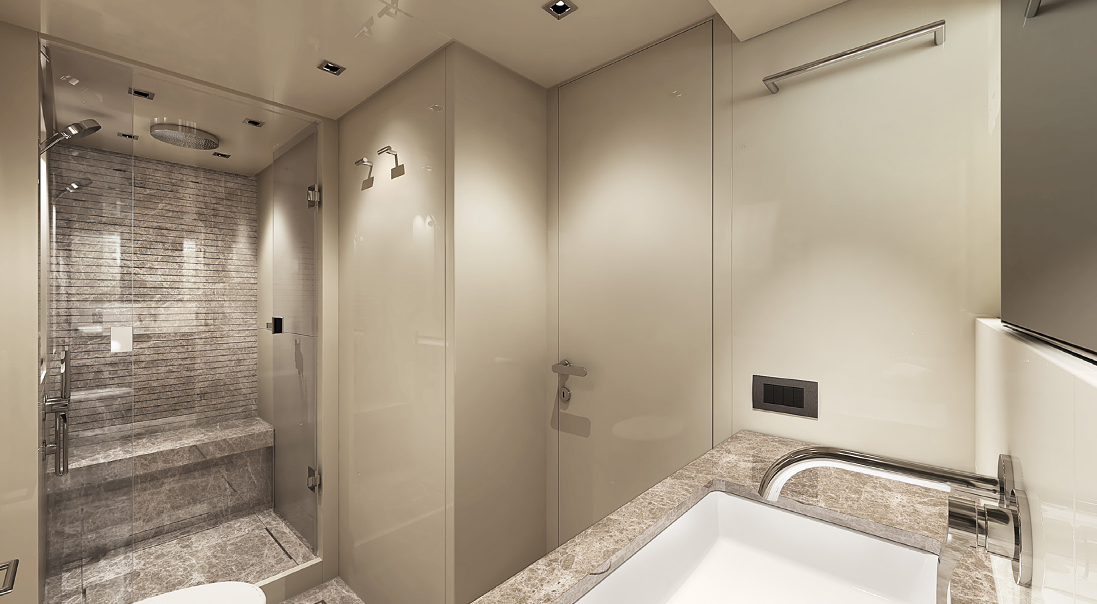

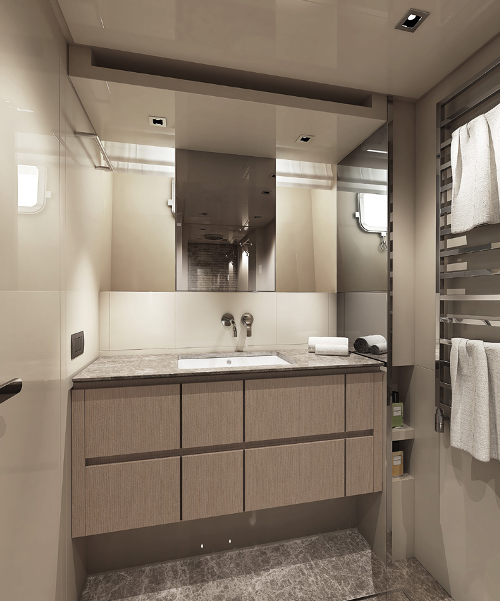

Master Cabin Bathroom: with sink, rain shower, WC with integrated bidet, heated towel rail and storage - Upgraded shower wall in Emperador marble with infinito finishing

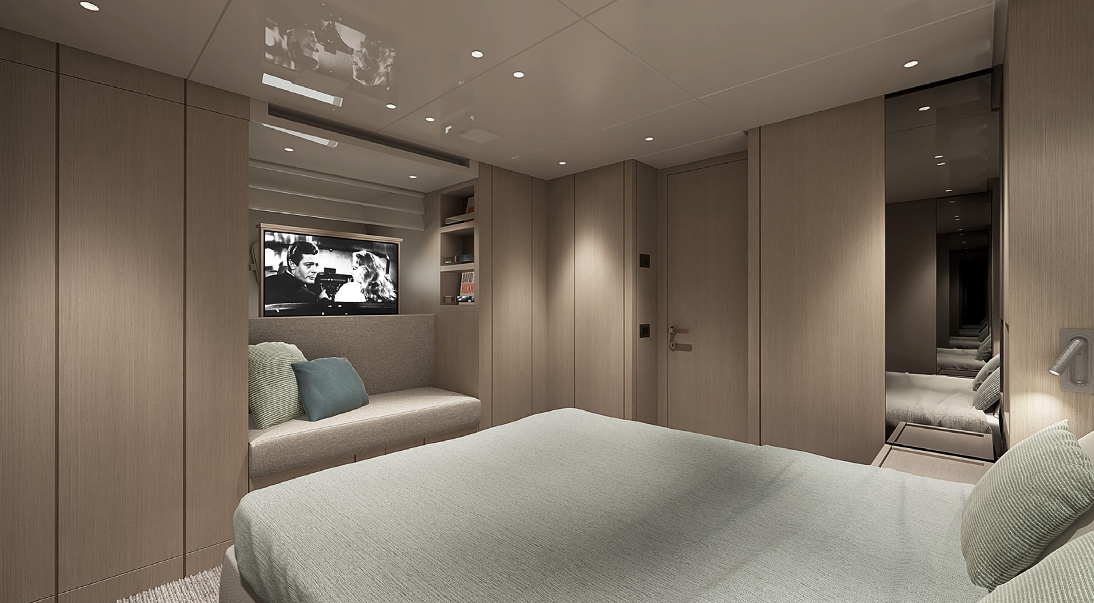

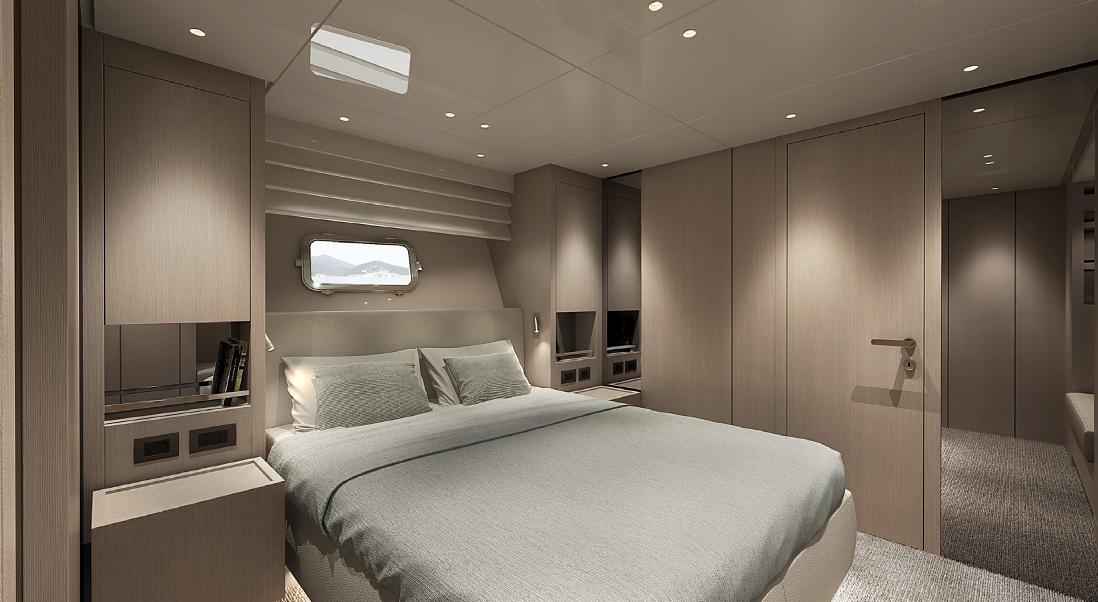

VIP Cabin - Double bed with 4 draws, bedside tables, cupboards, handing locker, sofa, carpet to floor, 32" TV in up/down cabinet and LED lighting under bed and bedside tables.
VIP Bathroom with sink, rain shower, WC with integrated bidet, heated towel rail and storage
Guest Cabin port side - Two single beds with drawers, bedside table, carpet flooring, wardrobe and 24" TV in custom cabinet.
Bathroom with sink, shower and WC
Guest Cabin starboard side - Two single beds with drawers that slide to form double, bedside table, carpet flooring, wardrobe and 24" TV in custom cabinet.
Bathroom with sink, shower and WC.
Crew Quarters - Accessed from cockpit with two beds and cupboard. Pre-wire for additional ship control monitor.
Shared bathroom with sink, shower and WC
EXTERIOR
Stern Cockpit - Teak floor, sofa and two chairs with coffee table

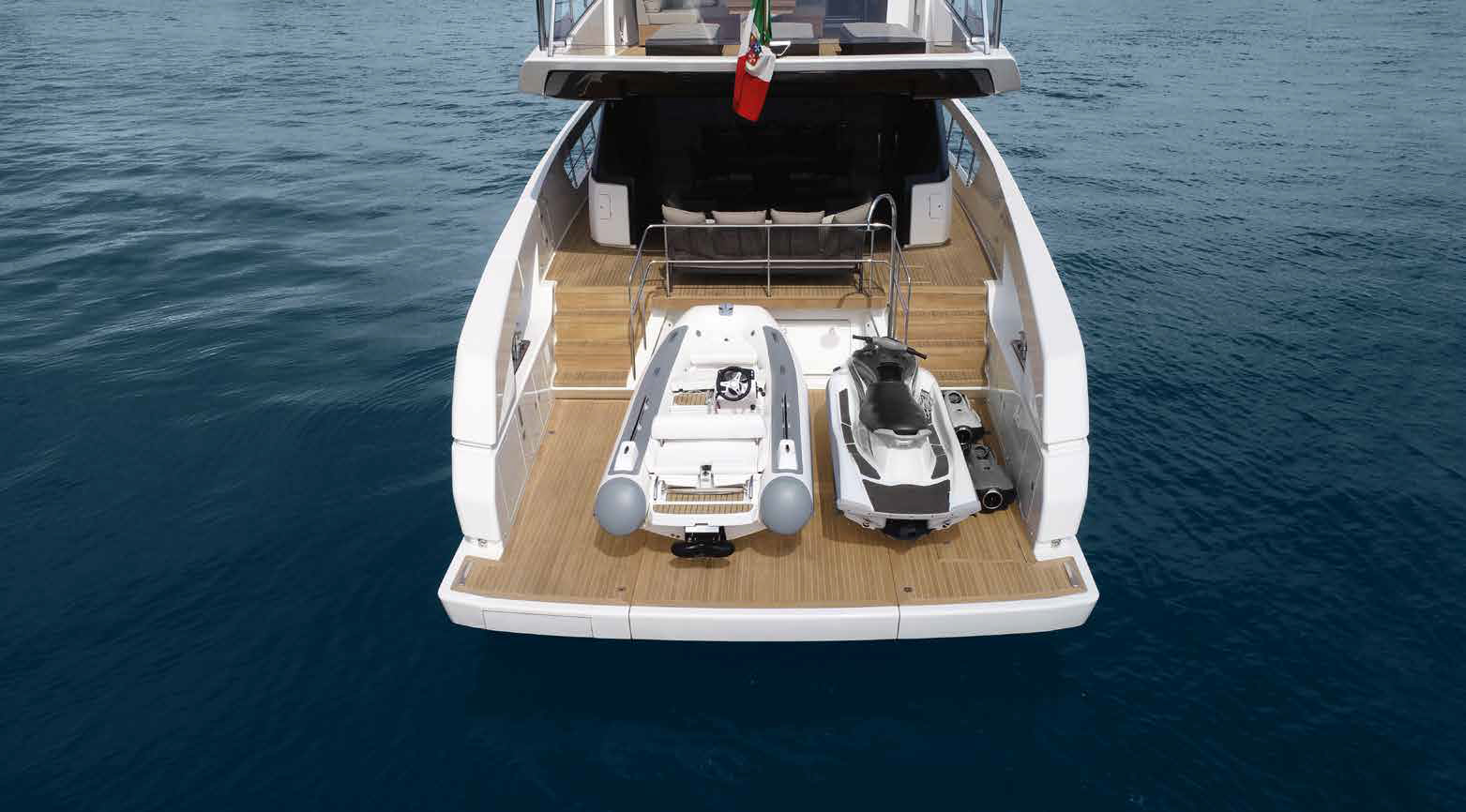

Beach club - teak laid floor, integrated tender crane (700kg), pantograph step passarelle and up/down swimming platform.

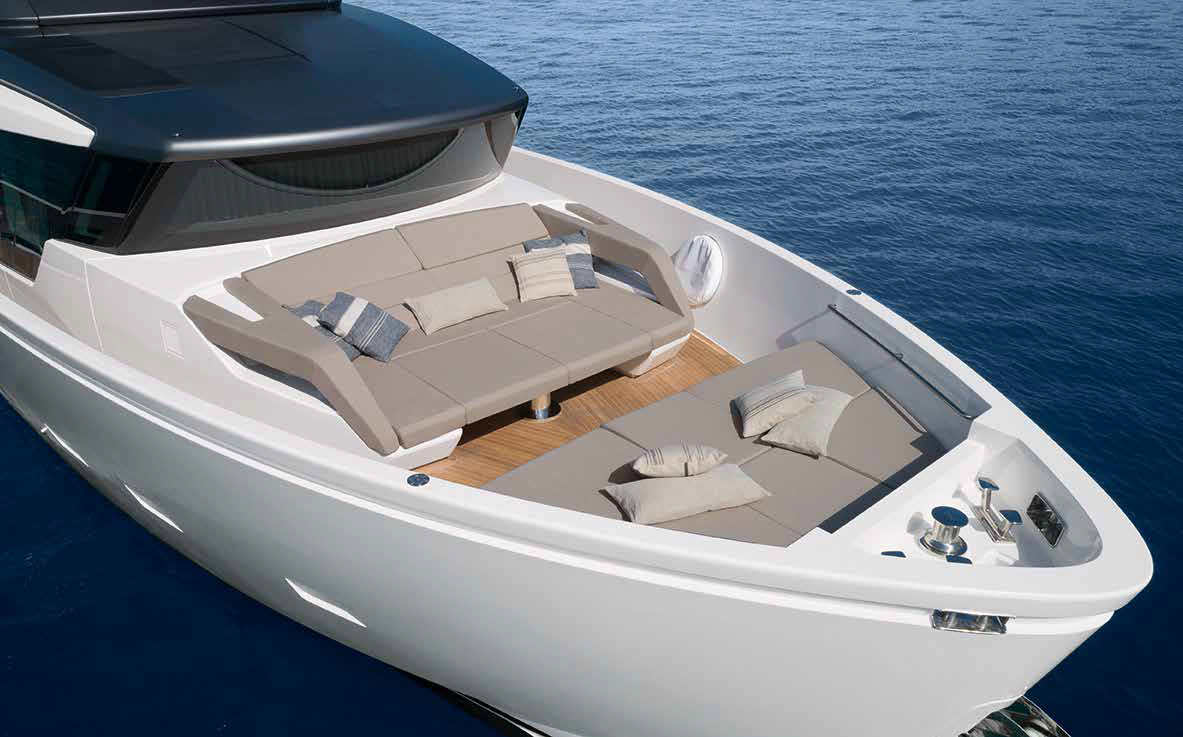

Bow Area - Teak floor, sofa, table, sunbed and sun awning

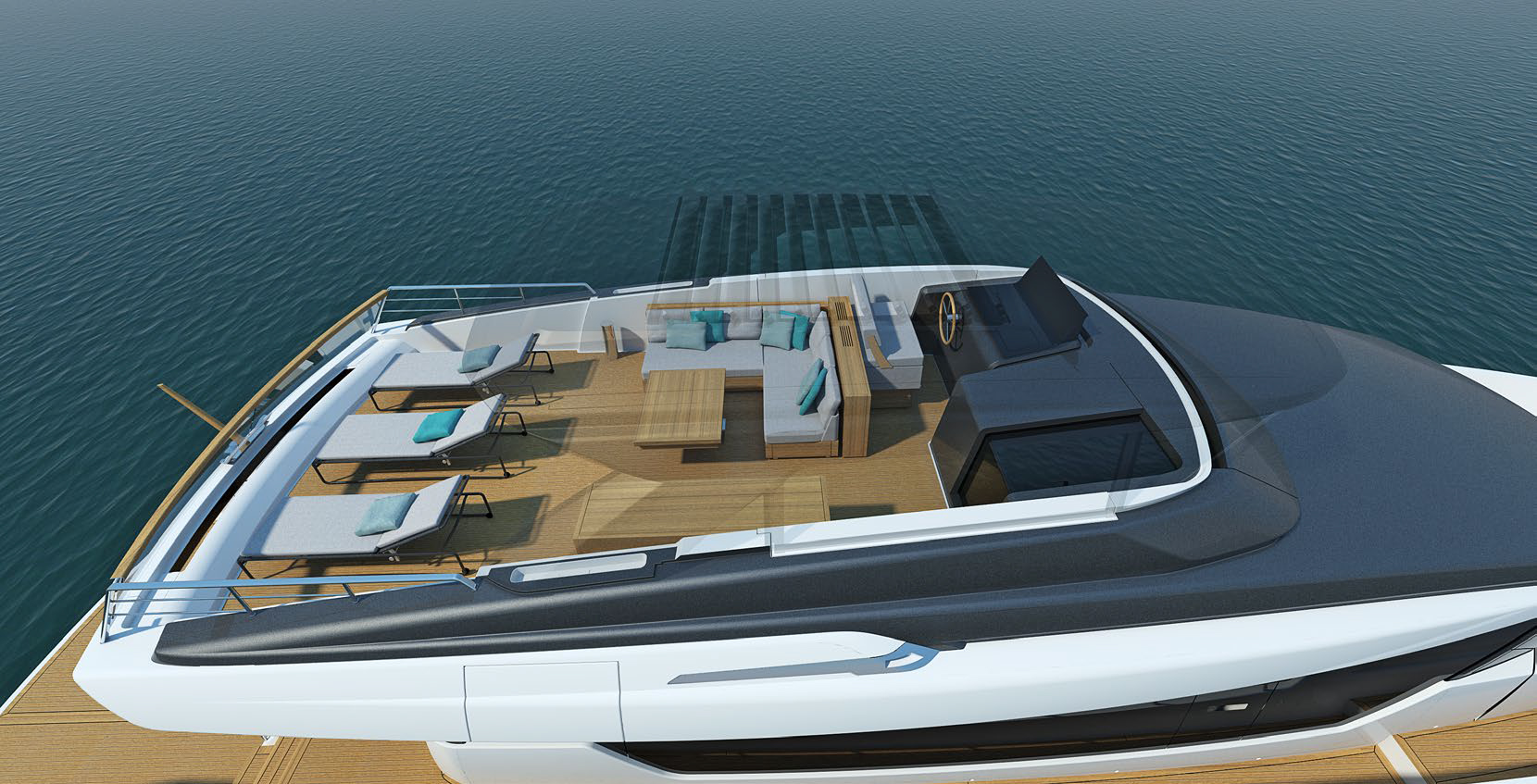

Flybridge - The flybridge is reached through an internal staircase coming up from the main deck on starboard side and is laid in teak deck. Fitted with custom L-shaped teak sofa with electric up/down teak table and four folding Roda chairs, hardtop with blade opening roof, electric opening side windows, aft area sun awning, wetbar cabinet with fridge, BBQ, icemaker, sink & waterproof socket, and three Roda Double sunbeds with two coffee tables to aft fly area. Helm station with pilot seat for two, engine controls, navigation instruments and engine instruments
INTERIOR AND EXTERIOR FINISHES
Sand oak interior joinery with matt ceiling panels to main deck (RAL1019) and gloss to lower deck (RAL9010)
Cadorin oak flooring to saloon and dining area
Foresti & Suardi ceiling spotlights throughout painted as per ceiling colour
Emperador light polished marble to all bathrooms (ex crew) - washbasin tops and all shower and bathroom floors
Teak with black joints to beach club, cockpit, side decks, bow area and flybridge
Air-conditioning system throughout (95.5k btu) with temperature control panels in each area
NAVIGATION EQUIPMENT
Raymarine diamond navigation system
Flybridge helm station
- Two12” multi-function display
- Additional monitor for Raymarine integrated ship-monitoring system
- Speed, depth, wind and temperature indicator
- Rudder angle indicator
- Autopilot
- VHF
- Waterproof USB point
Mounted on hardtop arch
- GPS antenna
- Open array radar 48” – 72 Nm.
- VHF aerial
- AIS aerial
- Signalling horn.
- Wind transducer
AUDIO & VISUAL EQUIPMENT - Silver package
Saloon - 50” LED TV; Hi-Fi, CD/DVD/Bluray reader, 4 speakers and subwoofer with cockpit connection.
Owner’s Cabin - TV led 43”; Hi-Fi, CD/DVD/Bluray reader, 2 speakers and subwoofer.
VIP Cabin - TV led 32”, stereo with 2 speakers.
Guest Cabin’s - 24" LED TV's, and sereo with no. 2 speakers
Flybridge - Marine Stereo with 4 speakers
Bow area - Stereo with 2 speakers connected to flybridge
Cockpit & Beach Club - Two speakers recessed into the cockpit ceiling, connected to the saloon HI/FI system & two speakers recessed into the sides of the beach area connected to the cockpit
KVH TV6 tv-sat antenna and dummy dome
MOORING & ANCHORING
Electric reversible anchor windlass 2300W
Foot switch for capstan
90kg Galvanised steel anchor with 100m of 12mm chain
Chain washing system.
Two aft electrical capstans 1700W
One 2000W capstan to bow
Fenders and warps
GENERAL EQUIPMENT
Electro-hydraulic passarelle/swimming ladder - teak with stainless steel frame
Hydraulic swimming platform
Electric-hydraulic tender launch crane system (700kg)
Protection covers for all exterior furniture and seating
CCTV camera system - cockpit and engine room camera
Idromar watermaker 180l/hr
Sun awning for aft of fly
Sun awning for the bow
Two underwater lights on transom
Searchlight with control on flybridge
Pre-wire for backlit boat name
Black signal ball
Radar reflector
SAFETY EQUIPMENT
Bilge pump system
Two 8 person life rafts with hydrostatic hooks
Courtesy flags
Fire blanket
First aid kit
16 life jackets
Buoy ring with line 30m
Light emergency buoy
Emergency fires kit
Epirb
Fire extinguishers (portable)
TWIN VOLVO PENTA IPS1200 D13-900HP
IPS Drive to propellers
Maximum speed approx. 22 knots
Cruising speed approx. 18 knots
Economical speed approx. 11 knots
Max range at economical speed approx. 615 NM
Electric bowthruster
Trim tabs
Additional Volvo IPS joystick cockpit station
Electric stabiliser fins with zero speed function
TANKAGE & WATER SYSTEM
Fuel capacity - 4,350 l
Fresh water capacity - 1,250 l
Stainless steel 100 l hot water tank
Grey water tank capacity - 400 l
Black water tank capacity - 400 l
Idromar watermaker 180l/hr
ELECTRICAL SYSTEMS
UK plug sockets throughout
230V AC single phase, 50 Hz for main power circuits
24V DC for small power circuits, visual signals, emergency lighting, electronics, communication systems and main engine start up.
12V DC for main generator start up and VHF
Two 28 kw generators (second generator option)
Two 230v 63A shore power connection
Batteries - service, engine starting, generator start and bow-thruster
Batteries charged by battery chargers and alternators
24V/230V 1500W inverter for galley fridge/freezer
Additional generator battery charger
The phrase 'you do not buy a Sanlorenzo you build one' is just not something you would hear from any other shipyard, Sanlorenzo offers their owners a complete tailor made approach to having a motor yacht built.
A Sanlorenzo is not your normal motor yacht and that is for one reason which is, it is a Sanlorenzo. It's something special. It's something exclusive. A yacht that people aspire to own.
This build slot for the Sanlorenzo SX76 is a very special chance for you to become part of the exclusive group of Sanlorenzo owners and enjoy specifying and building your own very special motor yacht.
