With triple Volvo IPS engines this sports style yacht is built in GRP and Carbon Fibre, painted in gold. The layout of the yacht was customised by the original owner to create 2 saloons ideal for family use. Privately used she offers a remarkable yacht built by Italian craftsmen.
Year
2015
Location
La Spezia, Italy
Cabins
3
Crew
0
LOA
77ft / 23m
Beam
5.56m
Cruising Speed
25
Max Speed
34
Engines
Volvo IPS D13 1200hp
Reference
36552
Price
€2,450,000 Tax Paid
AZIMUT 77S BUILT IN 2015 BY AZIMUT BENETTI, ITALY
CONSTRUCTION
Hull infusion GRP, with superstructure and swim platform in carbon fibre.
The main deck and the superstructure are a sandwich construction laminated with a closed cell foam core.
Two watertight bulkheads; one to divide the engine room from the accommodation area and another in the bow to separate accommodations from chain locker
The hull will have a partial double bottom where the structural tanks for fresh water, grey and black water will be fitted.
Teak is laid to the main deck, swimming platform and flybridge - 8mm thick glued directly onto the deck
Length overall - 23,6 m
Maximum beam - 5,56 m
Displacement - 58.2t
Waterline length - 23.54 m
Draft full load - 1,64 m
Fresh Water Tanks - 1100 Litres
Fuel Tanks - 4100 Litres
Holding Tanks - 715 Litres
THREE CABIN LAYOUT WITH TWO CREW CABINS ON LOWER DECK
Master cabin amidship and VIP cabin at bow

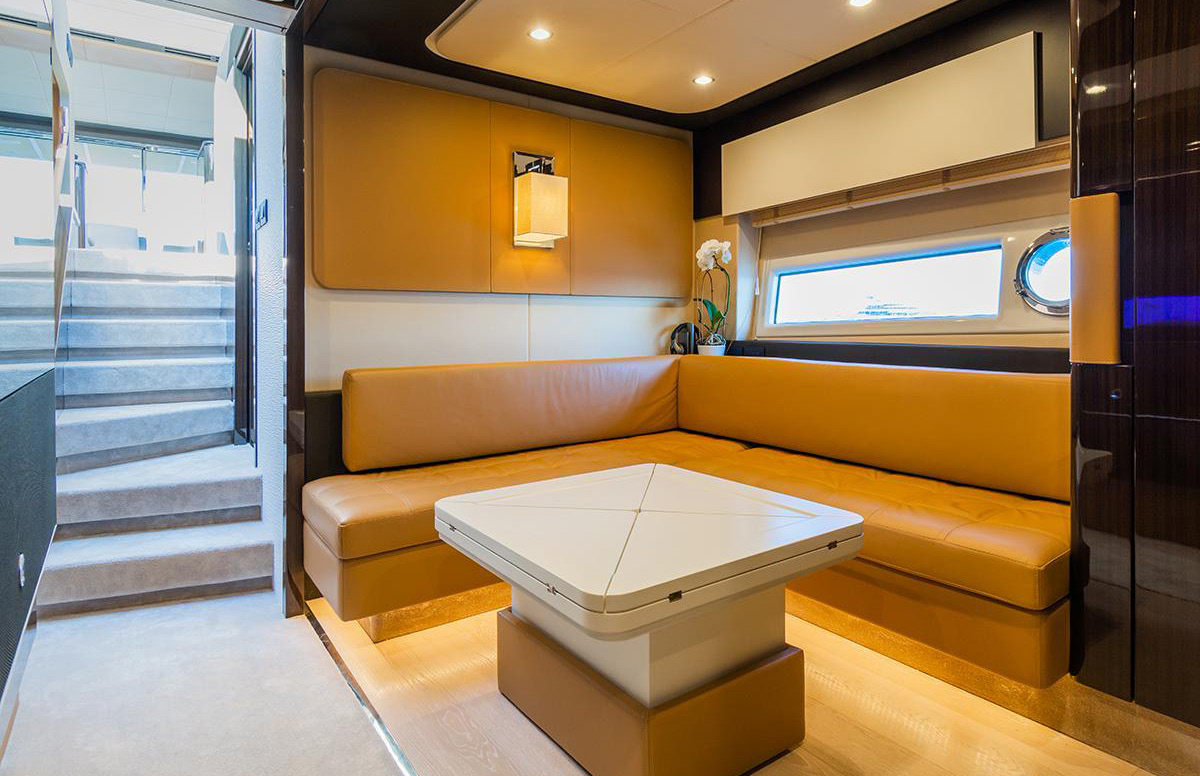

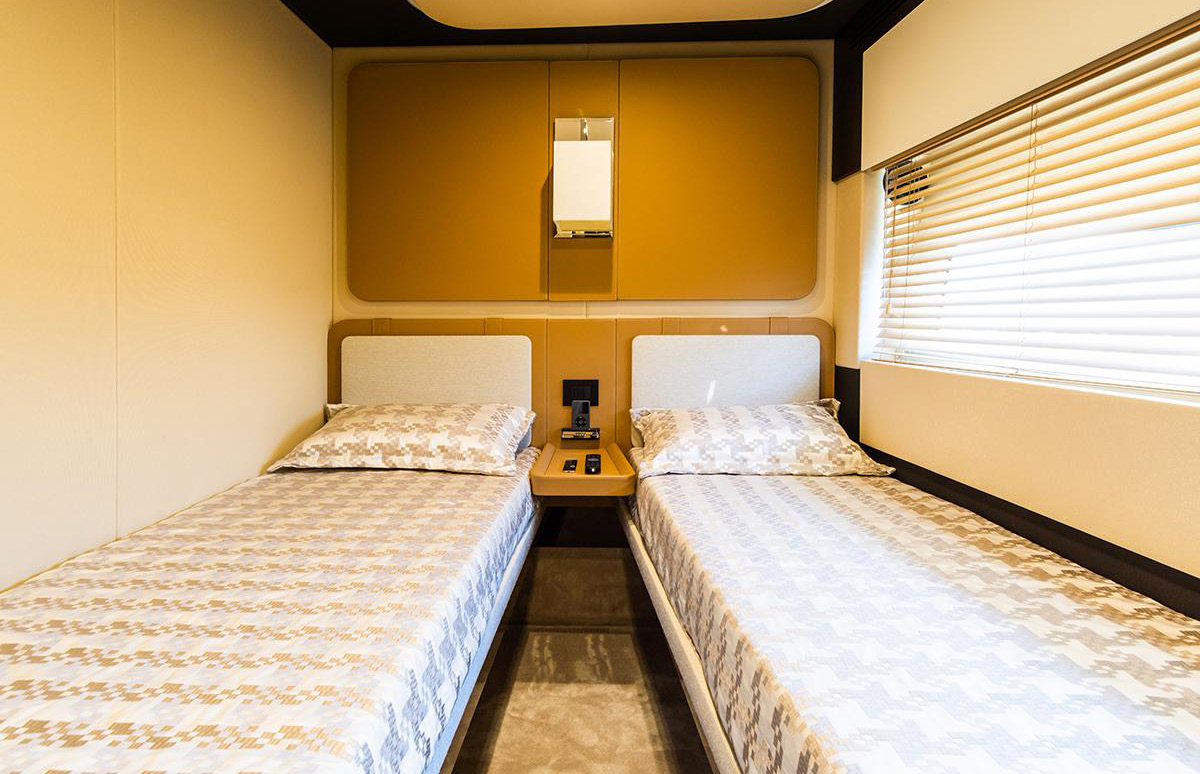

Lower saloon to port and twin cabin to starboard
Interior design by Carlo Galeazzi

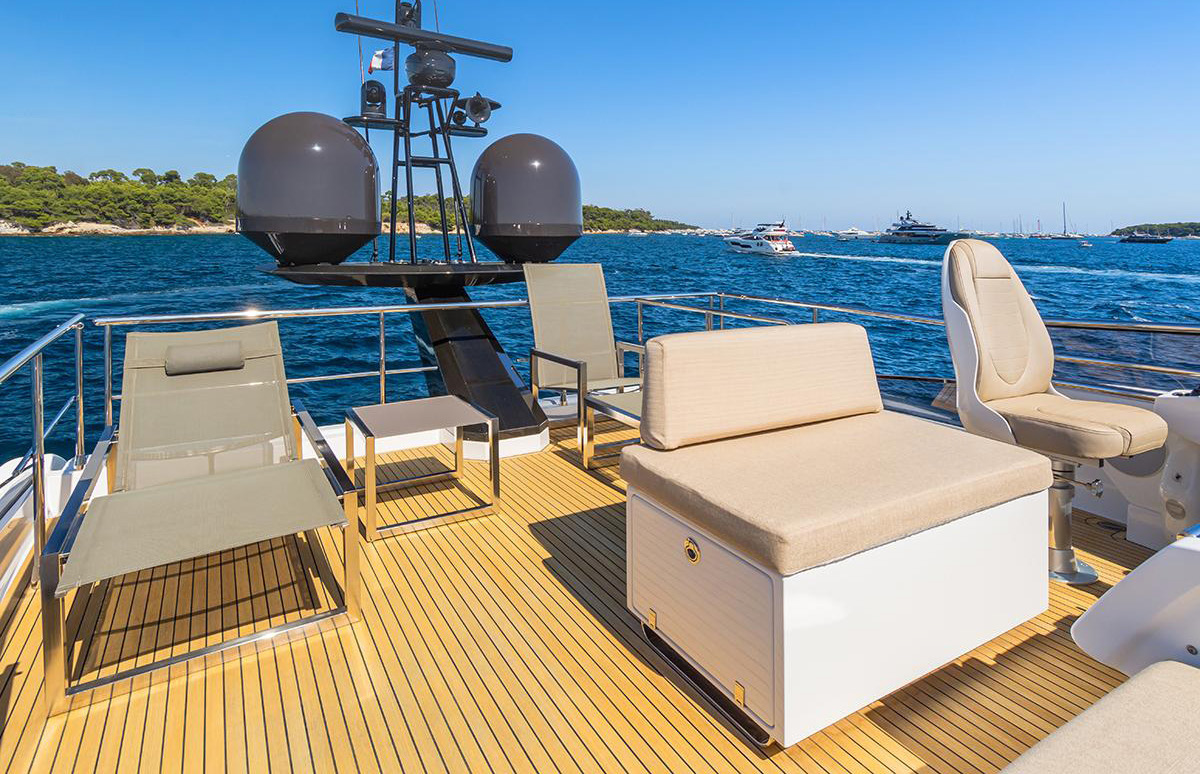

The open spaces offer sunbathing areas at bow, in the aft cockpit and on the sport-flybridge which includes a full equipped second helm station with an additional two seater bench next to the pilot seat.
An additional outdoor space of 8 square meters is offered by the pivoting stern platform which can take a load of 720kg.
The garage can host a 3.85m jet tender and a jet-ski.

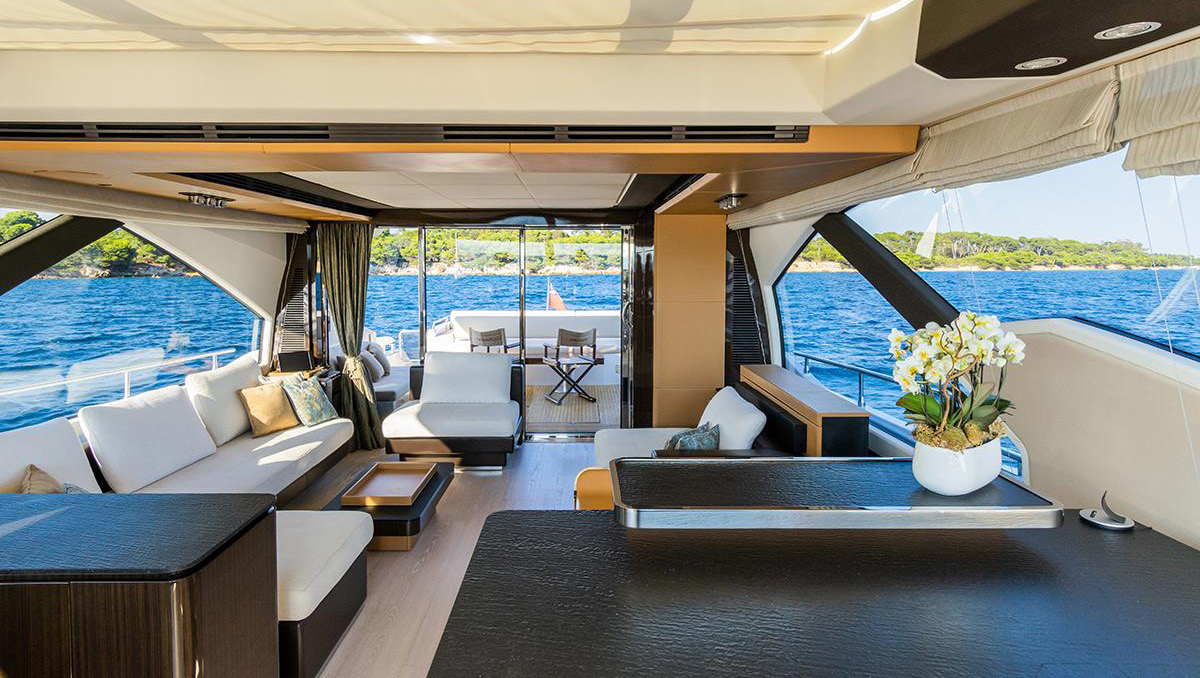

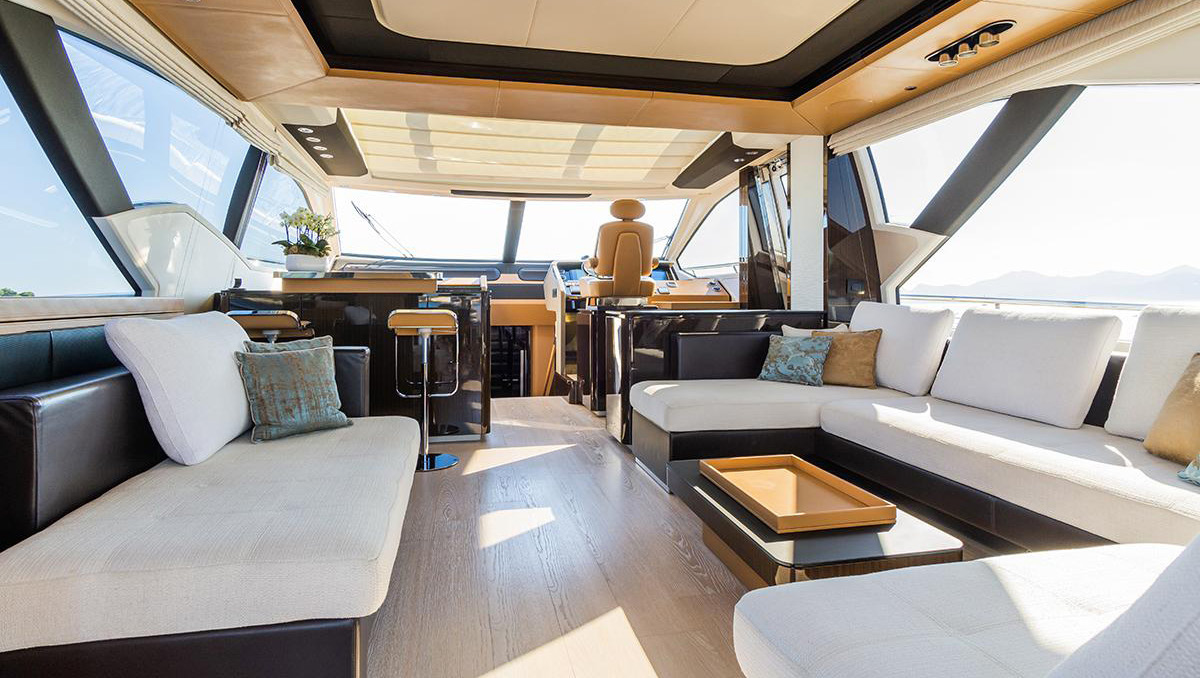

Large windows flood the inside of the salon and its customized Bar with light and offer a 360° view, creating a constant dialogue between the interior and exterior.

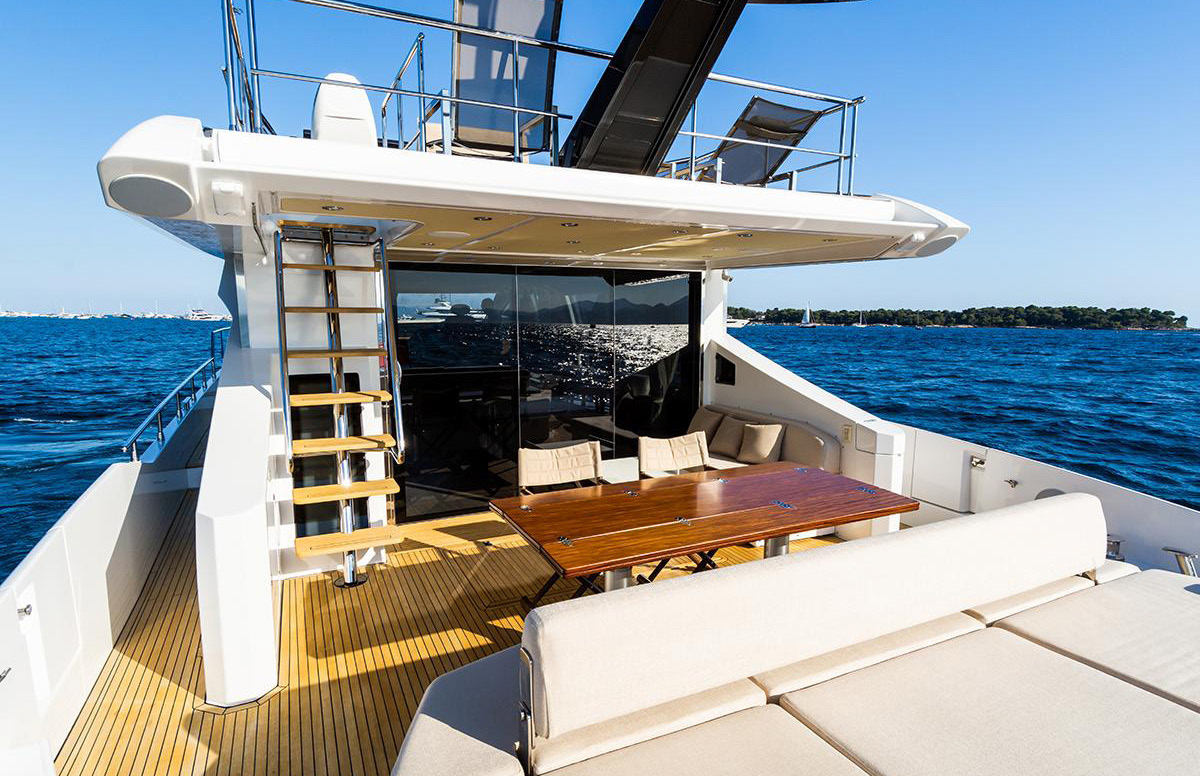

The dining table for 8 in the cockpit area can be shaded by an electronic soft-top.

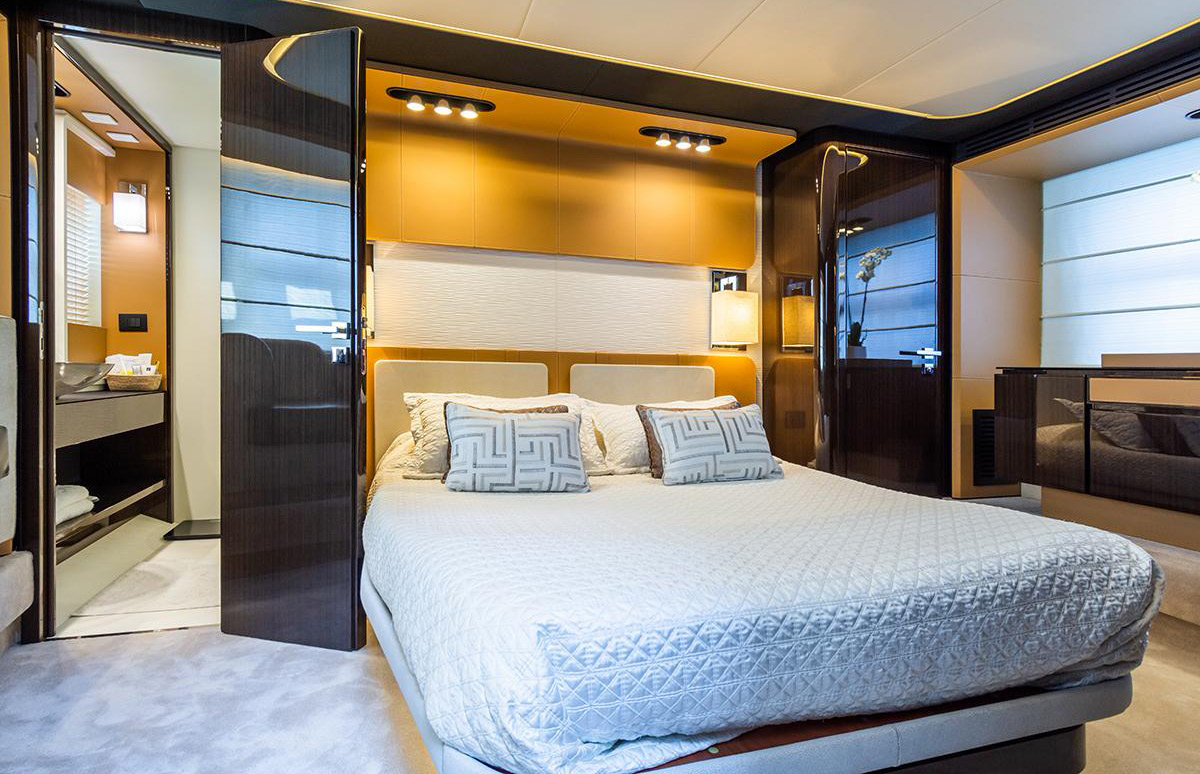

A private dinette area is situated in the full beam Master cabin, as well as a separate walk-in closet and the big squared windows offer a breath-taking view of the sea on the lower deck level.

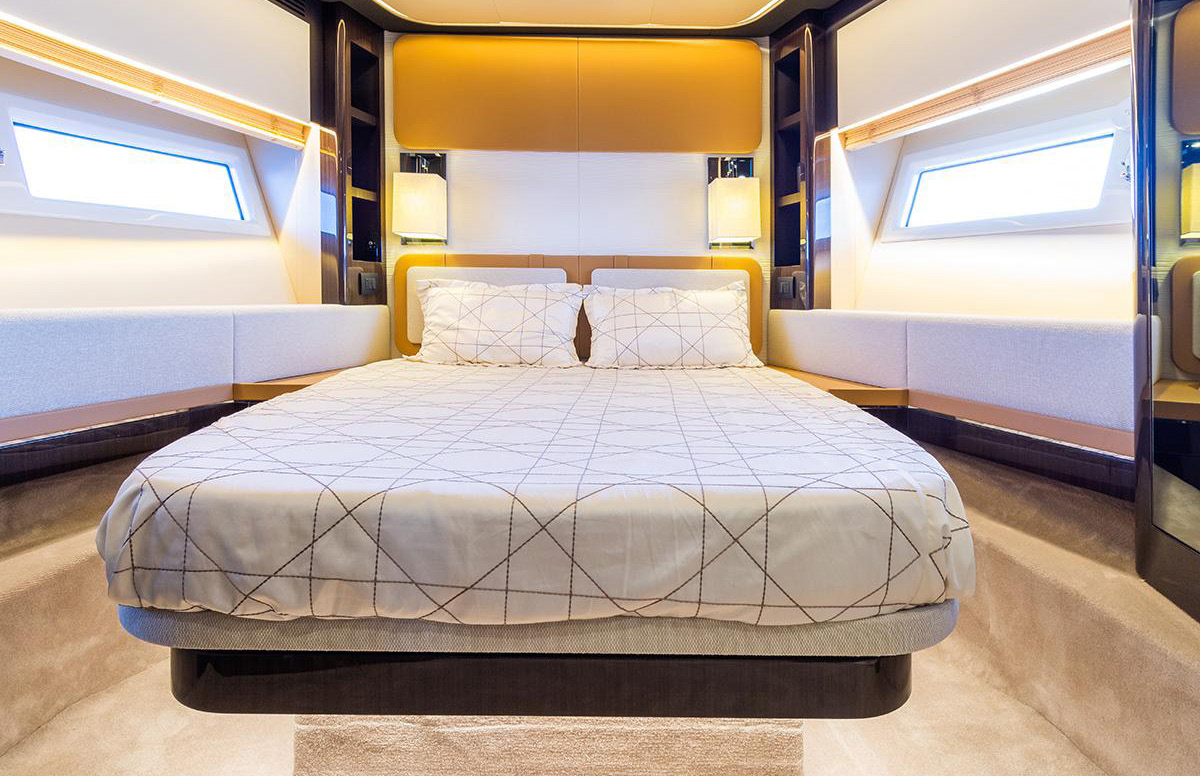

The vip and guest cabin are bathed in natural light thanks to their large panoramic windows with separate openable portholes.
The interior materials of the living areas are a mix of glossy Zebrano wood, light decorative panels in Renolit woodstock with ocean drive design including 3 dimensional elements and leather details, in all of the heads the furniture tops are in shiny black crystal and the showers have marble inlays.

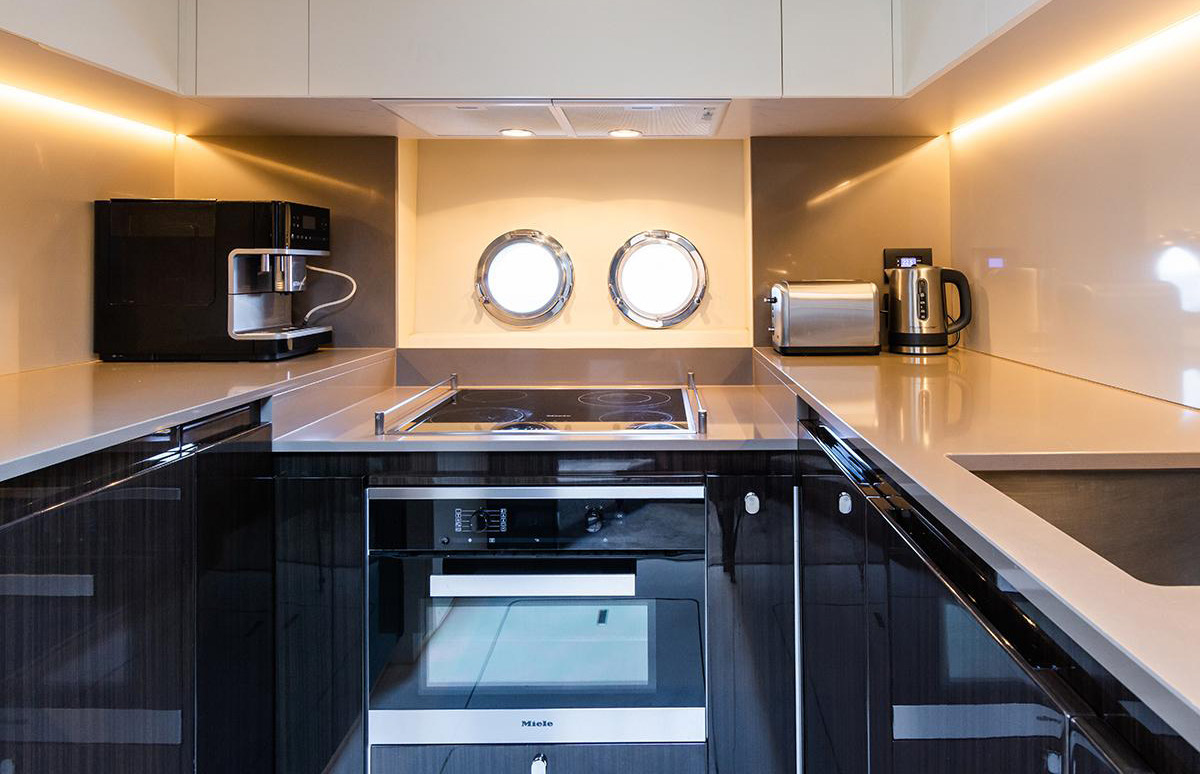

The professional galley is equipped with Miele appliances and hosts an underfloor storage/pantry for medium-long cruises.
VOLVO electronic engine controls with joystick
VOLVO electronic engine displays
Magnetic Compass: PLASTIMO
Auto pilot: VOLVO
Depth Sounder: RAYMARINE CP100 Downvision
Night vision: RAYMARINE FLIR M100
GPS / Plotter: 4 x RAYMARINE GS19’’
Wind / Speed Log: RAYMARINE
SAT com: KVH M9
VHF: RAYMARINE RAY260
Cellular phone / Wi-Fi system: GLOMEX 4G Antenna with router
Repeater(s) on sport fly
Customized CRESTRON domotic system
TV, Sat, iPod docks, DVD/Mp3 Players in salon, lower saloon and all cabins
2000 Movie Server
SONY 4K TV 55’’ in saloon
B&O BEOVISION TV 55’’ in lower saloon
LOEWE TV 55’’ FHD in master cabin
CRESTRON 4K Matrix with all resources centralized in 3 racks
Paging system
CRESTRON lighting
Audio equipment 3 Zones
14 x SONANCE outside speakers control from iPad keypads
CRESTRON amplification
MIELE 4-burner cooktop
MIELE hood extractor
MIELE oven H5030BM
MIELE microwave H5031BM
MIELE refrigerator / freezer KF 9713
MIELE dishwasher G1162SCVi
Additional freezers: VECO G60055, 2-drawers MS90
Additional fridges: VECO G60040, 2-drawers MS160
VECO wine cooler G51280
MIELE washing machine W3740 Bianco Loto
MIELE dryer T8823 Bianco Loto
Fire control system: SEAFIRE
Fire Extinguishers: 10 x 2Kg
2 x 8-person life rafts
1 x life ring
EPIRB
Stabilizers: 2 x SEAKEEPER 9 gyroscopic zero-speed stabilizers
Water maker: IDROMAR 210 l/h full automatic
Bow thruster: 11.2 kW SIDE POWER 24V
Steering system: 3 x integrated ELECTRONIC PROGRESSIVE
Fuel separators & filtration: 3 x RACOR
Generators: 2 x 28 kW
Generator hours: 1750 h (Nov. 2020)
Main engines: 3 x 900 Hp (671 kW) VOLVO D13 IPS 1200
Engine hours: 1080 h (Nov. 2020)

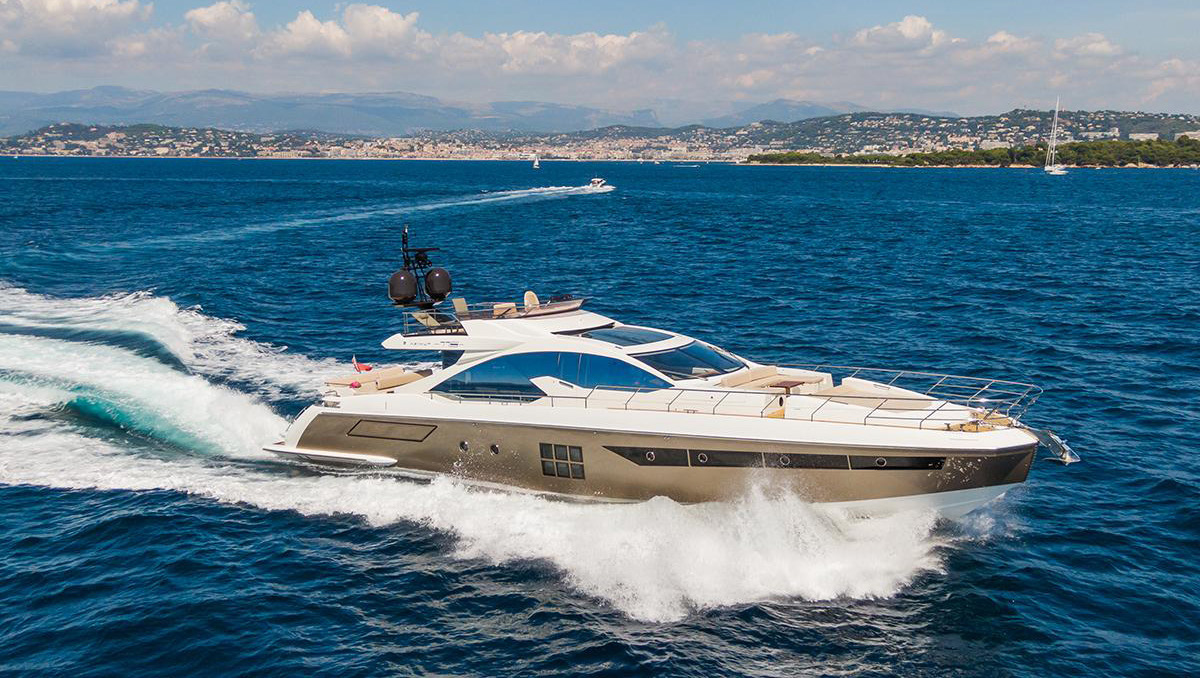

The Azimut 77s is a pedigree sports style yacht that offers the owner speed from the triple Volvo IPS engines with an array of generous exterior spaces for days lounging in the sunshine. The profile is sleek and stunning with the gold coloured hull, sure to turn heads where ever ventured. This 3 cabin layout offers generous accommodation flooded in natural light with the added benefit of 2 saloons on the main and lower decks ensuring quite time for guests if they wish to chill out and read away from the other guests. For sports yachts fans one to be considered.
